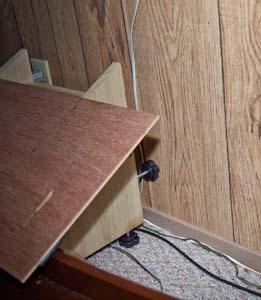

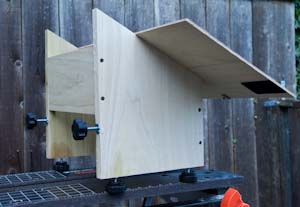

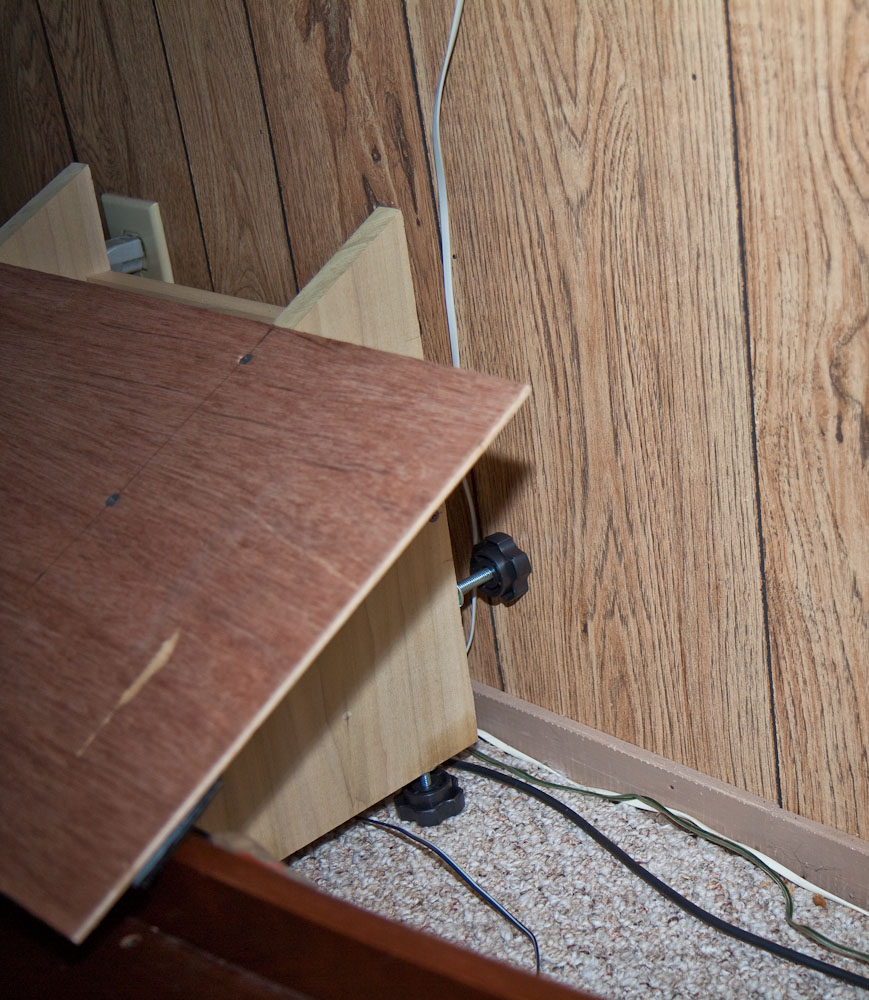

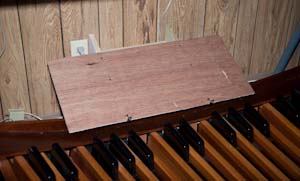

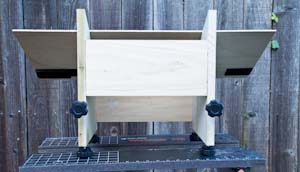

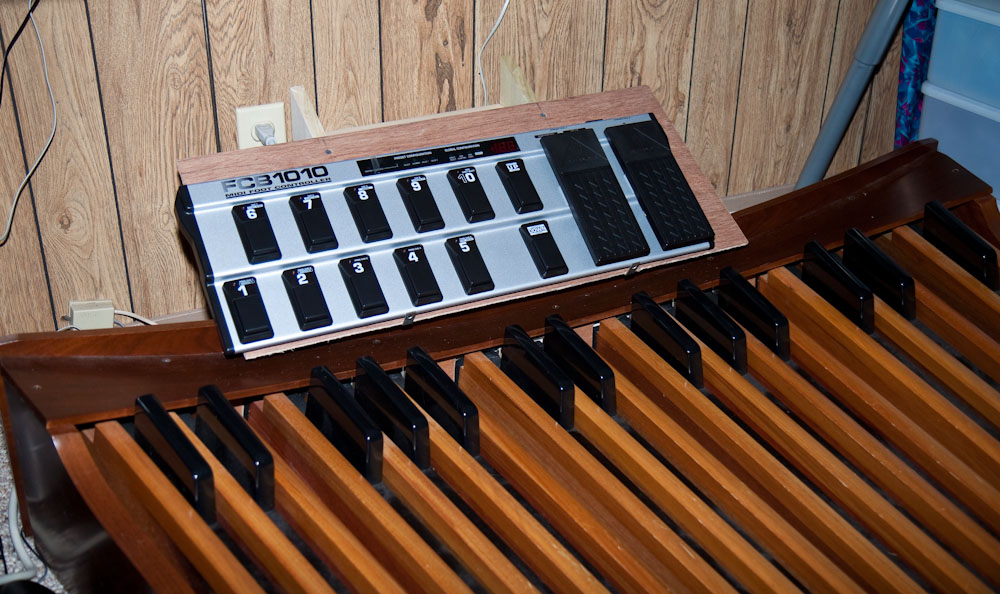

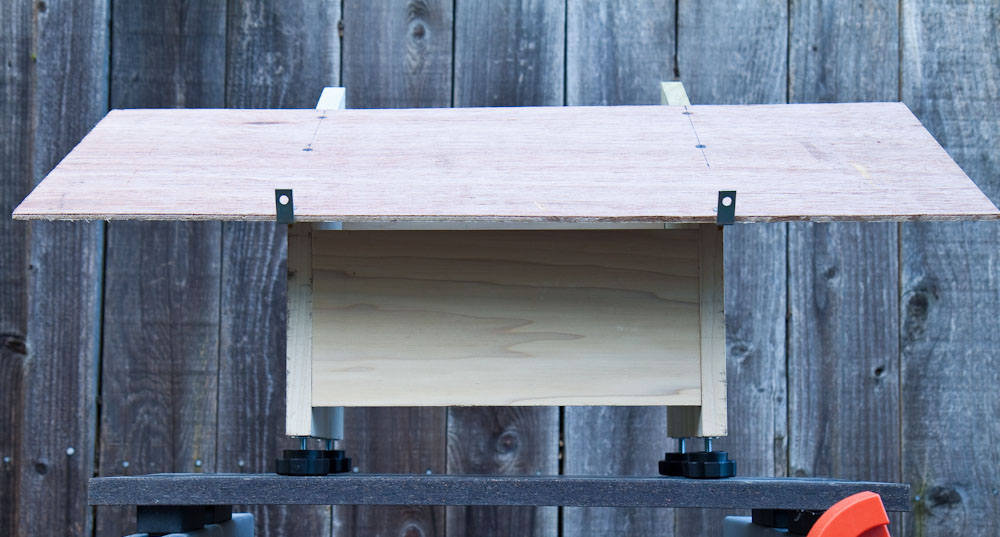

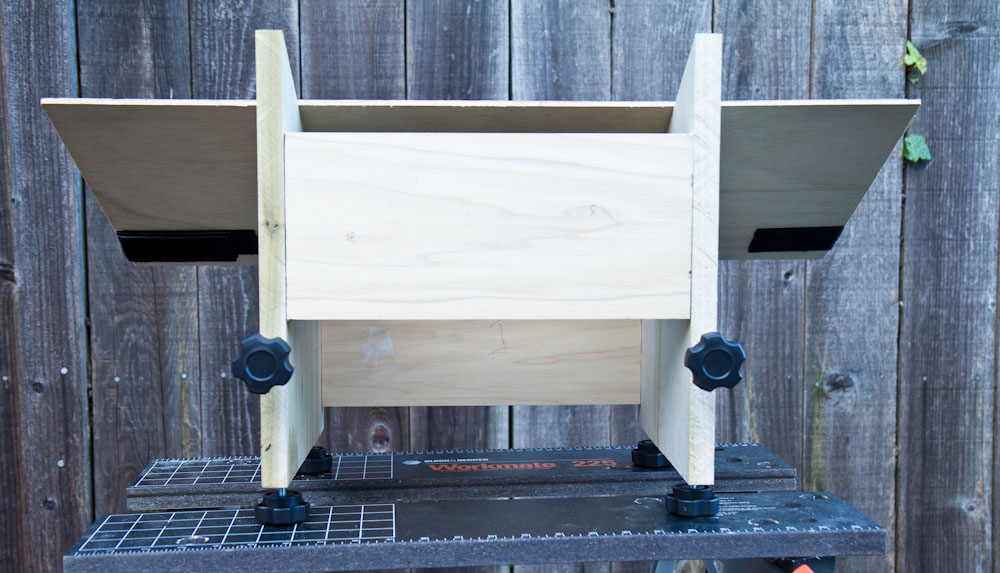

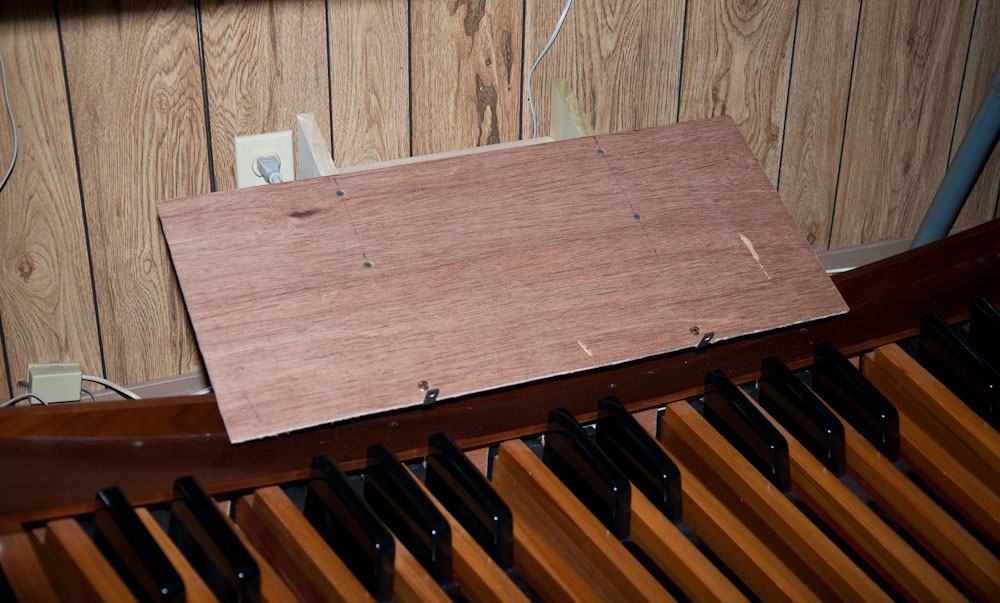

Here are some views of the stand I built for the FCB1010 foot controller.  I wanted it to be stable, but did not want to attach it to the pedalboard, possibly damaging the pedalboard.  The solution was to have knobs in the back that are tightened against the back wall, pressing the stand into the pedalboard.  I also used knobs as adjustable feet so I didn't have to be too precise in the construction.  I used velcro strips (the soft side) to pad where the stand touches the pedalboard.  The top is at a 62 degree angle from the vertical so the foot pedals are at 41 degrees when in the "closed" or furthest up position, as required by the AGO spec.
Click any picture for a larger version.
